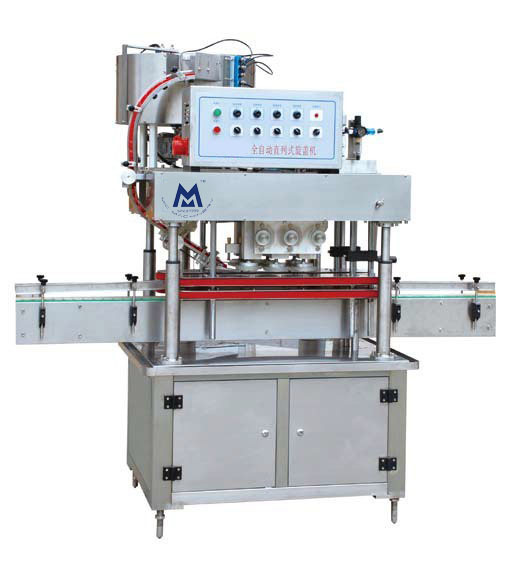

FXZ-6直列式旋蓋機

   本機是針對旋蓋多樣性而設計的通用型旋蓋機。其主要優點：在瓶與蓋發生改變時，無需更換配件，只要在設備上稍加調整即可，且旋蓋合格率高，速度快，操作維修方便。本機可以配備無鋁箔剔除裝置，無鋁箔的蓋在下蓋前被自動剔除，保證鋁箔的在蓋率為100%。本機主要部件采用優質不銹鋼制作，符合GMP要求。



主要參數：

1.旋蓋輪數：6輪

2.電源：220V/380V三相四線

3. 總功率： 2KW

4. 適用瓶徑：Ф40mm-Ф96mm

5. 適用蓋徑：Ф28mm-Ф72mm

6. 理蓋合格率：99.99%

7. 生產速度：≤8000瓶/小時

8. 工作氣壓：0.55MPa-0.65MPa

9. 耗氣量：0.6 m3/min

10. 外形尺寸：2000mm ×950mm ×2100mm

11. 機器重量：400 kg



 FXZ-6 Automatic Capping Machine



This is a general type capping machine for most caps. It is easy to operate and maintain. When changing different bottles and caps, adjustment is easy and no need to change any parts. The speed is fast and accuracy high. An extra non-foil rejecting device can be selected; it can reject the caps without the aluminum foil, to achieve the 100% accuracy of foil inside the cap. It is in accords with GMP.



Technical parameters:

1、Capping head: 6

2、Voltage: 380V, three-phase and four-wire

3、Power: 2KW

4、Suitable bottle dia.：Φ40-96mm

5、Suitable dia.：Φ28-72mm

6、Accuracy: 99%

7、Speed：≤8000bottles/hour

8、Air pressure: 0.55-0.65Mpa

9、Air consumption: 0.6 m3/min

10、Dimensions: 2000*950*2100mm

11、Weight：400kg
